Nomenclature of Common Inorganic Compounds & Drug Names
When textbooks teach nomenclature of inorganic compounds, the examples are often compounds that you may never see. This tutorial will focus on the nomenclature of inorganic compounds commonly encountered in the medical profession or even in everyday life. In addition to the learning the names, some background on the compounds are included. To me it seems quite shallow to learn names of compounds and not know anything else about them.

Oxygen in the air is diatomic (two atoms connected), but chemists don't call it dioxygen, the correct name is oxygen. In the medical field they usually call it "O-two", "medical oxygen", or simply oxygen. Likewise, other gases like fluorine (F2) and chlorine (Cl2) are simply called fluorine and chlorine; it's understood that they travel in pairs.



Sodium chloride is a typical binary ionic compound. "Binary" means there are two elements bonded together. "Ionic" means each are ions (Na+ and Cl-). Since opposite charges attract, this causes them to bond (combine) to make a compound. When talking to patients with high blood pressure, medical staff will say, "Reduce your intake of salt." This use of "salt" means sodium chloride (NaCl).

Salt is a general term for any metal combined with any non-metal. However, in everyday language, this word usually means sodium chloride.

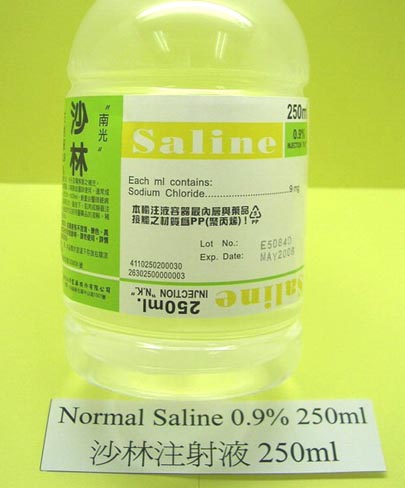

Saline is a term the medical profession uses for a sodium chloride solution. "Normal Saline" means a sodium chloride solution that is 0.9% w/v [weight/volume]. 0.9% w/v means 0.9 grams per 100 mL of solution. You can make it by putting 9 grams of sodium chloride in water and then bring up the volume to 1 liter.

"Normal" means that the salt level is close to the "salt" or "ion" levels in blood. That's why normal saline is given to dehydrated patients who can't take liquids orally. It is administered by IV (intravenous) through injection or use of a IV bag.

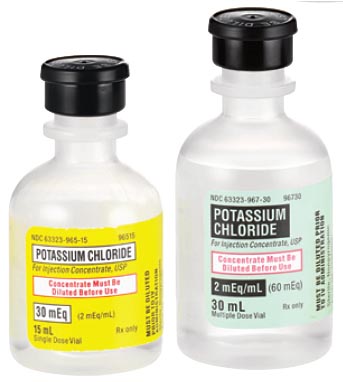

Potassium is needed for the proper functioning of muscles and nerves. If the body doesn't have enough potassium, the condition is called "hypokalemia". "Hypo" means under. "Kal" is from "Kalium" the Latin name for potassium (hence K as symbol). "emia" means blood. So hypokalemia means low levels of potassium in the blood. Potassium chloride is another binary ionic compound. Notice binary compounds end with "ide". The positive ion (potassium, K+) is always written first.

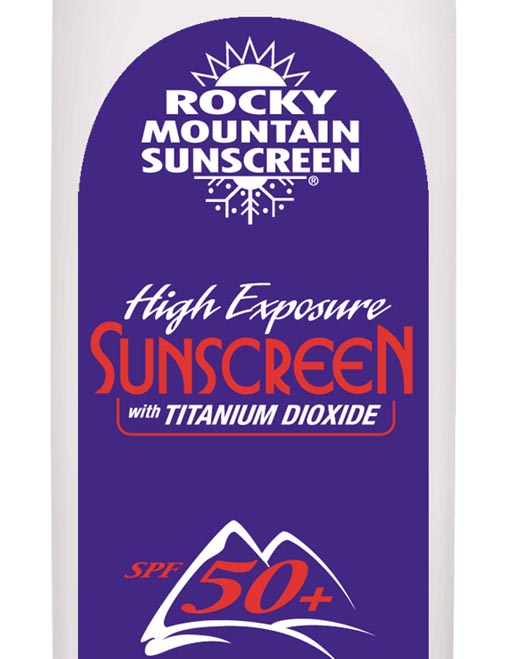

Titanium (IV) oxide is another binary ionic compound. It's used as a sunblock for people sensitive to the sun's UV light or are in high risk environments (mountains, snow, water)

Notice unlike sodium or potassium chloride, this name uses a Roman numeral between metal and non-metal. Sodium and potassium ions are always a plus one charge, so there's no need to indicate charge. Titanium however, can have a plus 2, plus 3, or a plus 4 charge, so there needs to be a way to indicate which one. The Roman numeral IV means this titanium has a plus 4 charge. To balance that charge, you would need two oxygen ions (oxide ions) because each oxygen ion is a negative 2 charge. So the formula is TiO2. This product names this compound as titanium dioxide, which is logical since there are two oxygen atoms; however, the organization that has the task to standardize chemical names says using the Roman Numerals will reduce misunderstandings. So the proper name is titanium (IV) oxide, but you are apt to see and hear it as titanium dioxide.

So far the ions I've shown were of single atoms, for example, Na+, K+, Ti4+, Cl-, and O2-. However, a large number of compounds have ions that are made from two or more elements. They call them polyatomic ions. "Poly" meaning "many" and "atomic" referring to atoms.

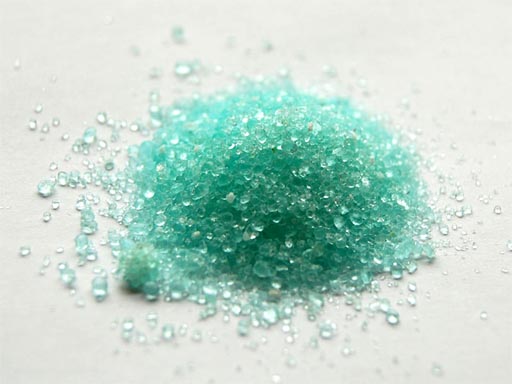

Sulfate: Iron supplements often contain iron (II) sulfate. Sulfate is a negative ion and its formula is SO42-. It is a polyatomic ion because it has two elements; sulfur and oxygen. The sulfur and oxygen are locked together as a group and their overall charge is negative two. Iron can have a plus 2 (II) or a plus 3 (III) charge, which is why the (II) is necessary. An older name for iron that had a plus 2 charge is "Ferrous". So some iron supplements may call this Ferrous sulfate rather than iron (II) sulfate.
cast and xray

In the medical profession calcium sulfate and barium sulfate are often encountered.

Casts are made from calcium sulfate hemihydrate. (CaSO4 * 0.5H2O). "Hemi" means one half and "hydrate" means water. In other words, one water sits between two CaSO4 molecules.

Barium sulfate is taken orally (like a milkshake made from chalk) and is used to absorb xrays. This allows the outline of the digestive tract to be visible in xrays.



Sulfite: Sulfate has four oxygen atoms. If there are only 3 oxygen atoms, then the name changes to "sulfite". The formula is "SO32-". It still has a negative (minus) 2 charge. This ion is important in health care because 1 out 100 people are sensitive to sulfite causing sometimes severe allergic reactions. Some people have died. The normal allergic reaction is breathing difficulties. Sulfite is used as a preservative in wines and many foods (like trail mix).

Sulfites are used to sterilize fermentation equipment and food containers because of its antimicrobial properties. Generally meat, cereals and dairy products are not treated with it as it destroys the thiamine (vitamin B1) content.

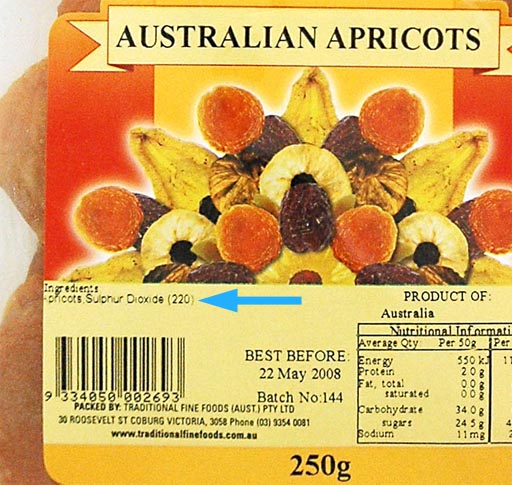

Most products don't list sulfite as an ingredient. They will call it sulfur dioxide (or British spelling sulphur dioxide). Sulfur dioxide is a gas. If you opened the bag, the sulfur dioxide would escape and no longer be a preservative. However, there's some moisture in trail mix or even "dried" fruit. Plus, there's water in wine. So the sulfur dioxide they list has actually reacted with water. Here's the reaction:
SO2 + H2O -> H2SO3
The product is called sulfurous acid. Now you see why they don't want to label it as sulfurous acid, which is very close to sounding like sulfuric acid.
In water, the sulfurous acid breaks up into ions with one being sulfite:
H2SO3 -> 2H+ + SO32-
Now you can see the sulfite ion that some people are allergic to.

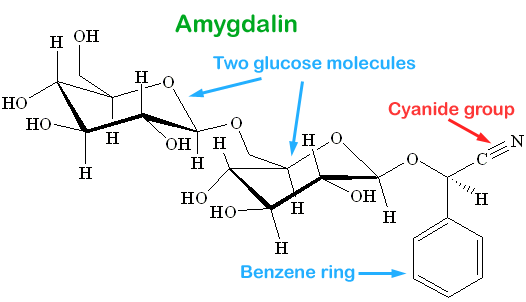

Since we just showed a bag of dried apricots, let's talk about apricot seeds an other polyatomic ion. The seeds and pits of apricots, cherries, almonds, peaches, and apples contain amygdalin. Inside the intestine bacteria can break off cyanide group making the cyanide ion (CN-). Under the name of Laetrile, amygdalin has been proposed as a treatment for cancer, but the medical community has rejected this claim. People desperate for a cancer cure will still buy these.

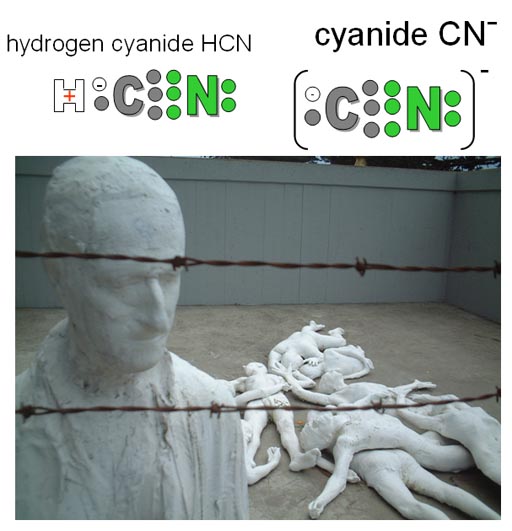

The type of cyanide used in gas chambers was hydrogen cyanide. It is a gas. As it got into the lungs and contacted water, it would break up into hydrogen ions and cyanide ions.

The other poisonous forms of cyanide are the sodium and potassium salts of cyanide. NaCN and KCN. These were used in suicide pills that spies carried with them.



Cassava is an important food source for 500 million people around the world, but the roots contain a substance that breaks down into cyanide. The substance is similar to amygdalin above. An enzyme in the plant turns the cyanide group on the amygdalin-like compound into hydrogen cyanide (a gas). One method of getting rid of it is to grind the root into a paste and spreading it out into a thin layer. In about 4 hours most of the hydrogen cyanide will escape into the air. Another process to reduce the cyanide compound is to grind and then wash the cassava flour. Because of the dangers, health organizations monitor the cyanide buildup in the populations that eat cassava.

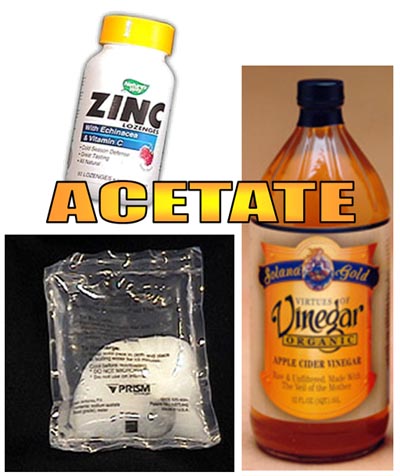

ACETATE:
Vinegar has been used for centuries to combat microbes in foods. That's the basis of pickled foods. Vinegar in stores is a 5% w/v (5 g/100mL) solution of acetic acid. In water some of the acetic acid loses a hydrogen ion (acid) that gets grabbed by water.
HC2H3O2+ H2O -> C2H3O2- + H3O+

The negative ion of acetic acid is called "acetate". The water that has grabbed the H+ ion is called the hydronium ion.

Also in the picture is a bottle of zinc acetate, which is a cold remedy. The bag contains sodium acetate. See next row for more information.

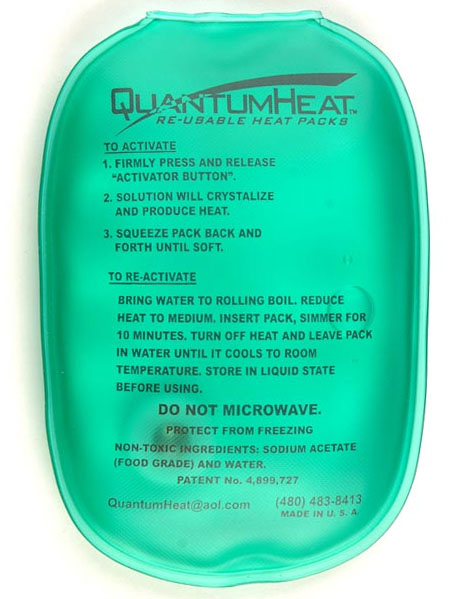

Heat pack
NaC2H3O2

Sodium acetate is used in instant heat packs. The way it works is very interesting chemistry. When placed in very hot water you can get a lot of sodium acetate to dissolve, but when it cools back down, some of the sodium acetate should precipitated out of the water, but it doesn't. They call that supersaturated because it has more sodium acetate dissolved that that cool temperature is capable of.

A single crystal of sodium acetate or a disturbance from the "activator button" can cause the sodium acetate in the solution to turn to a solid. At that point heat is released. The reason is that molecules in a liquid are moving around, but molecules in a solid are not moving around. Motion is energy, more specifically kinetic energy. When these molecules come to an abrupt halt as they go from liquid to solid, that kinetic energy has to go somewhere. That's the heat that is given off.



ammonium
AMMONIUM, NH4+:
Nearly all polyatomic ions you encounter are negatively charged. Ammonium is one that is positively charge. Ammonium gets its name from the Egyptian Ram God, Ammon. A salt with special properties was discovered near the Temple of Ammon. It was called Sal (salt) Ammoniac (NH4Cl). When heated, it decomposes into ammonia and hydrogen chloride gases. NH4Cl -> NH3 + HCl.
Other images: Ammonium chloride is used in cough medicine. Ammonium nitrate is used as a fertilizer and as an explosive. Ammonium hydroxide (NH4OH) is used in cleaners.

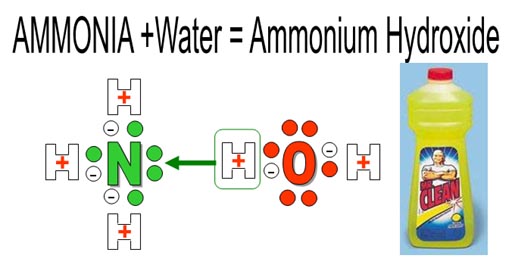

Ammonia is one nitrogen bonded to 3 hydrogen atoms. This illustration shows the outer electrons of nitrogen and how by sharing 3 electrons with 3 hydrogen atoms, it achieves a stable 8 electron configuration. On the right is water. One hydrogen on the water will come off and attach itself to the pair of electrons on ammonia. This hydogen leaves its one electron behind. Ammonia now becomes the ammonum ion with a plus one charge. The water is now the hydroxide ion (OH-). It's negative because the hydrogen left its electron behind. Together they are called ammonium hydroxide.

Ammonia is created in the body from digestion of proteins and amino acids (middle image: notice the amino part of this amino acid).   If there’s an excess of nitrogen, the body converts it to urea, which is less toxic than ammonia.  Urea is expelled in the urine.

Some babies are born without the enzymes to convert ammonia to urea, so they develop hyperammonemia, which is fatal or will cause brain damage if not treated. A case story about this disease is here: http://www.glennon.org/archives/

Bicarbonate (HCO3-):

In chemistry the new preferred name is hydrogen carbonate; however, you will probably see the name, bicarbonate, persist in the medical field for a long time.

Sodium bicarbonate (NaHCO3) is used in emergency situations like heart attacks, kidney failures, and lung problems to correct a pH imbalance from too much acid in the blood. Here's the chemical equation of neutralizing acid (H+):

H+ + HCO3- -> H2CO3




Maintaining the proper pH in the blood is a balancing act between carbon dioxide, carbonic acid, and bicarbonate ion. For example, if a person hyperventilates (breathing too fast), they lose CO2 and the pH of the blood because less acidic. One remedy it to have them breath into a paper bag so that the CO2 gets reabsorbed into the blood stream and brings back the lost acidity. Here's the key reaction that shows how CO2 produces acid (H+):
CO2 + H2O -> H2CO3 -> H+ + HCO3-

Chlorates: Chlorates are a group of polyatomic ions that are have one chlorine atom and one to four oxygen atoms. (ClO-, ClO2-, ClO3-, & ClO4-). The names in same order are hypochlorite, chlorite, chlorate, and perchlorate.

In the medical field, sterilization is always critical. One chlorate, sodium hypochlorite (NaClO), is the main ingredient in Clorox and is commonly used as an disinfectant. A syringe with NaClO solution is used in dentistry to clean and disinfect root canals.

Chlorate, and perchlorate are also used as a source of oxygen in fireworks and in rocket fuel. Perchlorates from dumped rocket fuel have contaminated the water supply in several states. This is a health issue currently being examined.



Nitrate (NO3-) & Nitrite (NO2-): These are produced by bacteria feeding off of human and animal waste. Nitrate can also come for fertilizers such as ammonium nitrate. High nitrate levels in drinking water can harm infants. Nitrate is converted into nitrite by bacteria that survives in infants’ stomachs. The nitrite ion enters the blood and converts the hemoglobin in red blood cells to methemoglobin The "met" is from "meta" meaning "changed." This "changed" hemoglobin has less ability to carry oxygen, causing a condition known as methemoglobinemia, also called "blue baby syndrome."



Below are tables and informaton from my help pages for a lab in CHM130; however, these tables are good examples of naming compounds. Study them and you will learn a lot about nomenclature.
Binary compounds:
Tip on finding formula and name: Atoms that have a charge have a one-track mind. They are attracted to anything with the opposite charge. In the table below the positive metal ions on the left column will all be attracted to the negative non-metal ions on the top row. If the positive metal ion is 1+ and the negative ion is 1-, after they combine, their charges balance out to zero. Being zero charge, they will not attract any other atoms. So the final formula is set as one each. For example, Na+ + Cl- --> NaCl. Also,  Ag+ + Cl- --> AgCl.  If the metal ion is 2+ and the non-metal ion is 2-, they will also cancel their charges when they combine. So the final formula is one each. For example, Fe2+ + O2- --> FeO. Now lets look at Na+ being attracted to O2-. After they combine, there's still a negative one charge because (+1) + (-2) = (-1). So NaO still has a negative one charge (NaO-). That means they will attract another positive sodium ion (Na+).  So, NaO- + Na+ --> Na2O. At this point the charges all cancel and Na2O is neutral so there's no more attraction, meaning that's the final formula. Remember, atoms can't think, but they can still make the right formula by simply coming together as long as there's a charge present.
Tip on finding name: When there are just two kinds of atoms, the name of the compound begins with the name of the positive ion (usually a metal). The second word is the name of the negative element except the name is shortened and "ide" is added.


Cl-
O2-
N3-
S2-
P3-
Na+
NaCl
Sodium chloride
Na2O
Sodium oxide
Na3N
Sodium nitride
Na2S
Sodium sulfide
Na3P
Sodium phosphide
Mg2+
MgCl2
Magnesium chloride
MgO
Magnesium oxide
Mg3N2
Magnesium nitride
MgS
Magnesium sulfide
Mg3P2
Magnesium phosphide
Al3+
AlCl3
Aluminum chloride
Al3O2
Aluminum oxide
AlN
Aluminum nitride
Al2S3
Aluminum sulfide
AlP
Aluminum phosphide
Fe2+
FeCl2
Iron (II) chloride
FeO
Iron (II) oxide
Fe3N2
Iron (II) nitride
FeS
Iron (II) sulfide
Fe3P2
Iron (II) phosphide
Ag+
AgCl
Silver chloride
Ag2O
Silver oxide
Ag3N
Silver nitride
Ag2S
Silver sulfide
Ag3P
Silver phosphide
Cu+
CuCl
Copper (I) chloride
Cu2O
Copper (I) oxide
Cu3N
Copper (I) nitride
Cu2S
Copper (I) sulfide
Cu3P
Copper (I) phosphide
Notice some metals have a Roman numeral after them and some don't. If the metal can only have one charge, then there's no reason to indicate the charge. Some metals, however, can have different charges so we have to indicate their charge.
Names and formulas of compounds
Name
Formula
(Note: I added an equation to show how the ions combined)
Potassium sulfide K2S  (K+ + K+ + S2- --> K2S)
Silver bromide AgBr  (Ag+ + Br- --> AgBr)
Dinitrogen tetroxide N2O4
Nickel (II) sulfide NiS  (Ni2+ + S2- --> NiS)
Magnesium phosphide Mg3P  (Mg2+ + Mg2+ + Mg2+ + P3- + P3- --> Mg3P2)
Calcium oxide CaO  (Ca2+ + O2- --> CaO)
Chlorine trifluoride ClF3
Normally chlorine is seen at the end (Like NaCl). The more positive atom is written first. When non-metals combine with metlas, the metals have the positive charge and is written first. In this case chlorine is more positive than fluorine, so chlorine is written first.
Lithium nitride Li3N
Copper (I) phosphide Cu3P
Since the phosphorus ion is a 3- charge and we see 3 copper atoms, that means the the copper must have a plus one charge. 3x(1+) balances with 3-.
Aluminum chloride AlCl3
Sodium hydride NaH
Iron (III) iodide FeI3
Ternary Compounds

CN-
NO3-
CO32-
SO42-
PO43-
NH4+
NH4CN
Ammonium cyanide
NH4NO3
Ammonium nitrate
(NH4)2CO3
Ammonium carbonate
(NH4)2SO4
Ammonium sulfate
(NH4)3PO4
Ammonium phosphate
Ca2+
Mg(CN)2
Magnesium cyanide
Mg(NO3)2
Magnesium nitrate
MgCO3
Magnesium carbonate
MgSO4
Magnesium sulfate
Mg3(PO4)2
Magnesium phosphate
Al3+
Al(CN)3
Aluminum cyanide
Al(NO3)3
Aluminum nitrate
Al2(CO3)3
Aluminum carbonate
Al2(SO4)3
Aluminum sulfate
AlPO4
Aluminum phosphate
Cu2+
Cu(CN)2
Copper (II) cyanide
Cu(NO3)2
Copper (II) nitrate
CuCO3
Copper (II) carbonate
CuSO4
Copper (II) sulfate
Cu3(PO4)2
Copper (II) phosphate
Notice that iron (III) below has the same charge as aluminum above so the number of the anions (negative ions) will be the same. Since iron has more than one oxidation number, we must indicate which one it is. When aluminum combines, it only has a +3 charge, so there's no reason to indicate the charge.
Fe3+
Fe(CN)3
Iron (III) cyanide
Fe(NO3)3
Iron (III) nitrate
Fe2(CO3)3
Iron (III) carbonate
Fe2(SO4)3
Iron (III) sulfate
FePO4
Iron (III) phosphate
To find names, you can learn the rules. Also, if you have Internet access, try typing the formula in the search field (like in Google). For example, to find the name of H2CO3 type H2CO3 in the search field. You will likely see websites that show the name of carbonic acid.
H+
HCN
hydrogen cyanide if gas
hydrocyanic acid if in water
HNO3
Nitric acid
H2CO3
Carbonic acid
H2SO4
Sulfuric acid
H3PO4
Phosphoric acid
Name
Formula (I added an equation to show how the ions combined)
Potassium sulfate K2SO4  (K+ + K+ + SO42- --> K2SO4)
Ammonium bromite NH4BrO2  (NH4+ + BrO2- --> NH4BrO2)
Zinc nitrate Zn(NO3)2   [Zn2+ + NO3- + NO3- --> Zn(NO3)2 ]
Sodium sulfite NiS  (Ni2+ + S2- --> NiS)
Iron (II) carbonate FeCO3   (Fe2+ + CO32- --> FeCO3)
Magnesium hydrogen phosphate

MgHPO4   (Mg2+ + HPO42- --> MgHPO4)

Note: Phosphate (PO43-) has negative 3 charge, but when combined with H+, one of the negative charges is canceled.  So the result is a negative 2 charge. Since Magnesium ion is plus 2, the charges combine to be zero with one each.

Calcium chlorate CaCl2  (Ca2+ + Cl- + Cl- --> CaCl2)
Cobalt (III) acetate Co(C2H3O2)2   [ Co2+ + C2H3O2- + C2H3O2- --> Co(C2H3O2)2 ]
Sodium chromate NaCrO4  ( Na+ + CrO4- --> NaCrO4)
Potassium dichromate K2Cr2O7
Aluminum nitrate Al(NO3)3
Mercury (II) cyanide Hg(CN)2
Manganese hydroxide Mn(OH)2
Lithium hypochlorite LiClO
Sodium hydrogen carbonate
(sodium bicarbonate)
NaHCO3
DRUG NAMES
You've been learning about the polyatomic ions that are usually combined with a metal. You will also see these polyatomic ions attached to various drugs. Most CHM130 and CHM151 classes that cover nomenclature never discuss how the polyatomic ions names are used with many of the drugs we see.
morphine

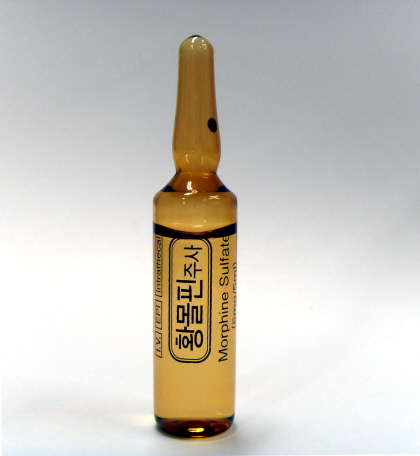

This is an ampoule of morphine sulfate in a water solution. Morphine (like many drugs) is not soluble in water, so pharmaceutical companies turn morphine into salts (ionic compounds) so that the morphine will dissolve in water. They do that by adding an acid to the morphine. Most any acid will work and they have used about 20 of them to make various salts of morphine. Because this is morphine sulfate, they used sulfuric acid to convert the morphine. See the next row for more details.
morphine structure

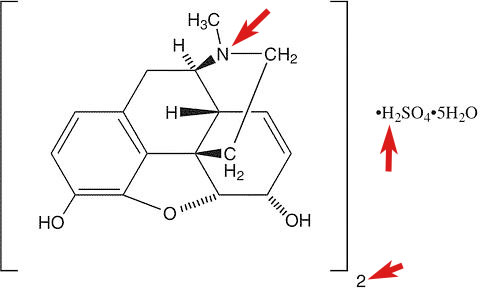

This is the structural formula for morphine sulfate. Notice the nitrogen. Morphine is in a class of drugs called "alkaloids". They get that name because the nitrogen that is in them makes them alkaline. In other words, they are capable of neutralizing an acid because the nitrogen will attract and hold a "H+" ion. Notice the red arrow pointing to the H2 in the sulfuric acid (H2SO4). Recall that sulfuric acid releases 2 H+ ions. One of those will become attached to the nitrogen. Since sulfuric acid has 2 of these H+ ions, it can supply the H+ to two morphine molecules. Notice the small 2 at the bottom right. That indicates there are two morphine molecules attached to the sulfate ion (SO42-). The hydrogen atoms in H2SO4 are not really next to the SO4, they are attached the nitrogen. There are also 5 water molecules attached. The proper name is morphine sulfate pentahydrate. These salt forms of morphine can be dissolve and placed in ampoules (for injection) or that can be made into tablets.
Morphine acetate (acetic acid)
Morphine citrate (citric acid)
Morphine nitrate (nitric acid)
Morphine phosphate (phosphoric acid)
Morphine hydrochloride (hydrochloric acid)

To the left are some other salts of morphine. You will recognize the polyatomic ion. From that you should know the acid that was used to make that particular morphine salt.

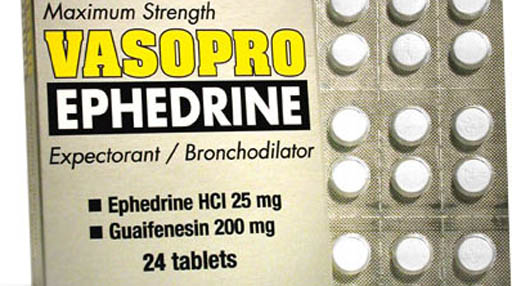

Ephedrine is another drug that is often converted to a salt form. Again it makes it more water soluble, which helps it dissolve in the stomach. This is ephedrine hydrochloride being sold as a bronchodilator. It's often used as a stimulant and appetite suppressant.
ephedrine

To the left is the structure of ephedrine. Notice the nitrogen. So this is another alkaloid compound. The nitrogen accepts the H+ ion coming from hydrochloric acid. The chloride ion remains nearby. This make ephedrine much more water soluble.

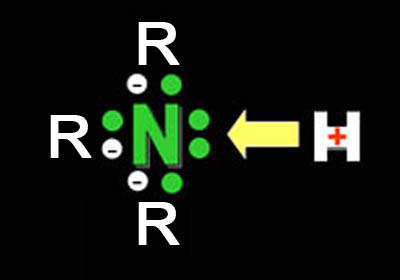

Nitrogen attracts hydrogen ions because there's a pair of extra electrons (unpaired electrons) where the H+ will be attracted. The "R's" represent some other element or group attached to the nitrogen. In other words, nitrogen can accept 3 electrons, so can bond with 3 other elements. But it also has those pair of electrons that do not bond with other elements does attract H+ ions.

Remember nomenclature is all about recognizing patterns and groups. The main pattern is the balancing of charges. Recognizing individual element symbols is easy, the harder part is recognizing when 2 or more elements behave as a group (polyatomic ions). For example, "LiClO" above shows us 3 elements, but we have to recognized that the elements in "ClO" are bound together tightly as a group, so it has its own name of hypochlorite.
