Experiment#1: Air We Breathe.
A close-up inspection of particulates in the air

dust storm

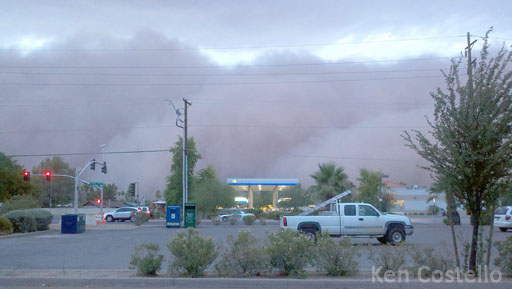

The image on the left is from one of the dust storms that hit Mesa and Phoenix.    We all know that breathing that dust will be bad for us.   Even on days without a dust storm, there are plenty of particulates in the air which aren't healthy.

Surprisingly, it's not just what the particulates are made of, but the size of the particulates that also affects its effect on the lungs.

Note: In this context, "particulates" mean particles that are suspended in the air.

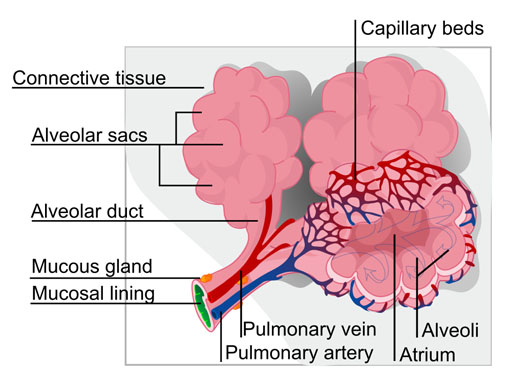

aveloli The lungs contain thousands of sacs called alveoli.   This is where oxygen passes through the lining of the alveoli and enters the blood.  This is also where carbon dioxide leaves the blood.  Our nose hairs and mucous in the nasal passages and the bronchial tubes try to block particles that we breath in.  However, if the particles are too small, they get by these defenses and get to the alveoli.  If the particles are even smaller, they pass through the lining of the alveoli and even get into the blood stream.
(See image below) The human hair is about 70 to 100 millionths of a meter in diameter.  A millionth (micro) of a meter is called a micrometer or micron for short.   The symbol for a millionth (micro) is µ.   So the human hair is 70µm to 100µm in diameter.   Particles over 10µm are usually trapped by nose hairs and mucous in the nasal passages.  So their danger is less.  However, particles between 10µm and 2µm get past those defenses and get deep into the lungs.   These are such things as dust particles, mold, mold spores, and pollen.   They can irritate the lungs and cause severe reactions.   Smaller particles (0.1µm to 2.5µm) are small enough to pass through the lung lining and enter the blood stream and reach all organs of the body.  As you might guess, this can cause even greater health issues.  These smaller particles can be soot (from combustion of wood, gasoline, diesel, etc.), aerosols (from sulfuric acid forming in the atmosphere and reacting with other particles), and finely powdered metal (from car brake pads, metal sanding, etc.).
Collage of Particulates

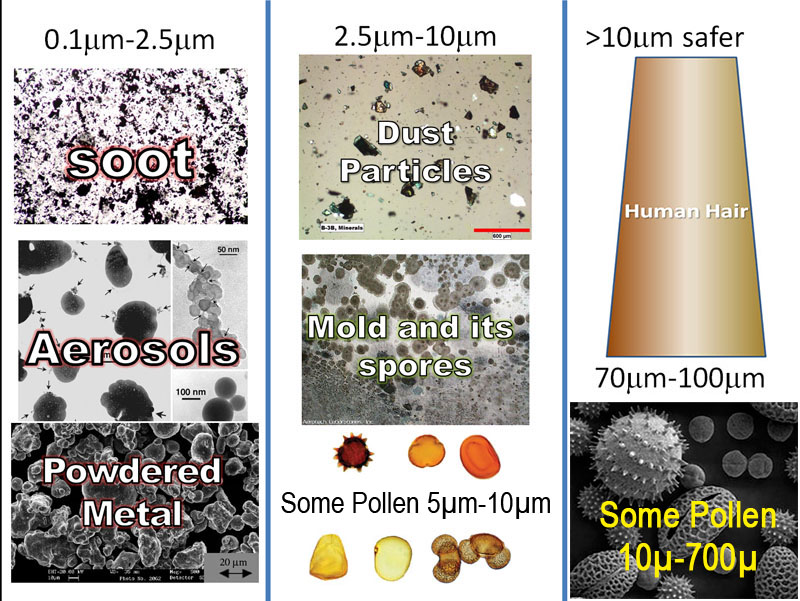

The air inside and outside our home contains numerous particulates (particles suspended in the air). Below are some, plus their size in microns. Anything under 10 microns is not visible to the eye and is more hazardous. By the way, dust mites live in your bedding and pillows. They eat the flakes of skin that you shed.

Human Hair .................(70 - 100 microns)
Pet Dander ..................(0.5 - 100 microns)
Pollen ...........................(5 - 700 microns)
Spores from Plants ....... (6 - 100 microns)
Mold........................... (2 - 20 microns)
Smoke ........................ (.01 - 1 micron)
Dust Mite Debris ........ (0.5 - 50 microns)
Household Dust .......... (.05 - 100 microns)
Skin Flakes ...................(0.4 - 10 microns)
Bacteria....................... (0.35 - 10 microns)

As you can see, all of these dip down into the unhealthy range of 0.1µm to 10µm.

Hepa Filter

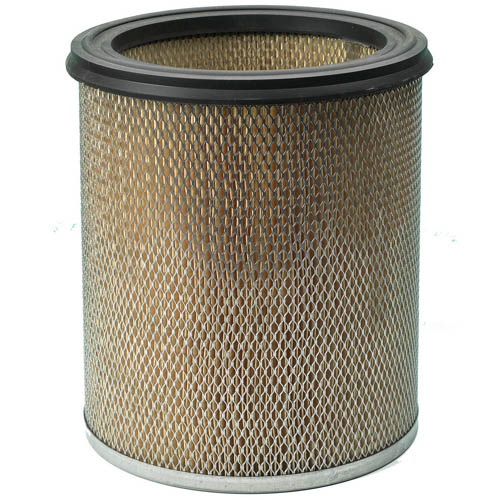

As a defense, filters are employed to trap these particles.  You may have heard of HEPA filters for vacuum cleaners and room air filters. HEPA stands for "High Efficiency Particulate Arresting". Arresting meaning stopping. These filters were first used to capture radioactive particles in the air at the facility where the first atomic bomb was being built.

HEPA filters will only miss 3 out 10,000 particles 0.3 microns in size. For larger size particles, it misses even fewer of them.

It uses a mesh of fibers to accomplish this. Fibers can be made from plastic, glass, or cellulose (like cotton fibers).

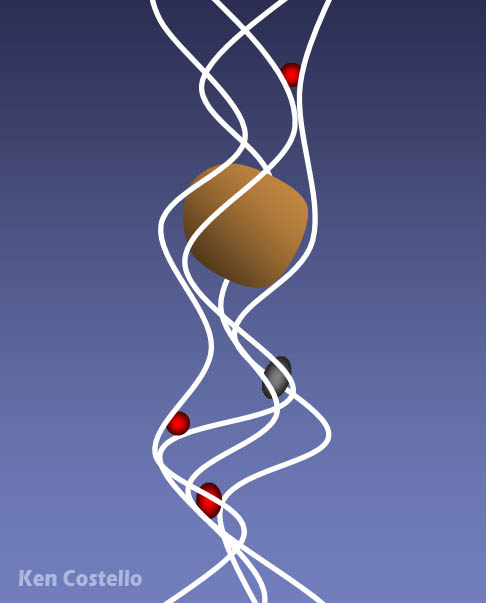

fiber trap particles

The fibers actually have openings much larger than the particles that it can capture. So it doesn't act like a seive that can only capture particles larger than the seive openings. As particles move through the fiber mesh, they get wedged in the narrow spaces where the fibers cross each other. The faster moving air actually helps particles get wedged in between fibers. That's probably why it is called High Efficiency Particulate Arresting. Of course, particles larger than the openings will get caught between the fibers.

They call these mechanical filters because the particulates are mechanically held (blocked or wedged) in the filter.

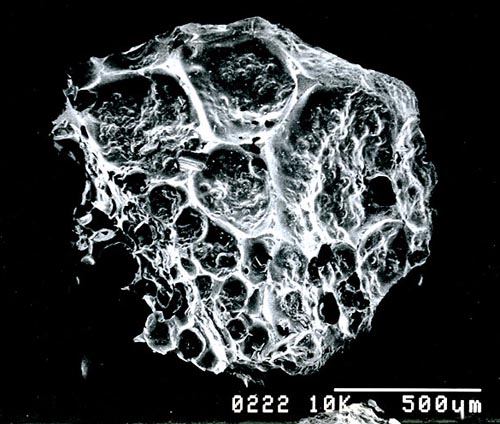

This is a granule of activated charcoal. The pits seen are about 100 microns in size; however, these are the large pits. There are others thousands of times smaller. So activated charcoal can act as a mechanical filter by blocking particles larger than its smallest pores. However, it can also trap certain substances that are so small that they can pass right through the pores. Activated charcoal does this because certain substance are attracted to the surface of the carbon. In other words, the carbon in activated charcoal acts like fly paper to certain substances. Vapors from solvents like gasoline or paint thinner stick to the surfaces and are trapped.

They call this adsorption (spelled with a "d"). Absorption (spelled with a "b") is when a thing soaks into something. Adsorption is when it sticks to its surface.

This is the famous brown air of Phoenix. It's appearance is from a mixture of dust, smoke, other particulates, and nitrogen dioxide (which is brown).
smoke from forest fire

Smoke from wood fires:

The smoke from a campfire or from a forest fire is quite dangerous partially because of the abundance of very small particles that are in the smoke.   Most particles in wood smoke are smaller than the 2.5 microns (2.5µm).  These particles don't normally get coughed up.  They are so small that they get stuck into the lining of the alveolus sacs.



erhaps the most dangerous component of wood smoke is the countless airborne particles (particulates). Airborne particles smaller than 2.5 microns are harmful because they are tiny enough to lodge inside lung tissue, while particles larger than 2.5 microns are coughed out. Researchers have discovered that the particles found in wood smoke are almost all smaller than 2.5 microns.



The Environmental Protection Agency lists the below health dangers for particulates:

  • Irritation of the airways, coughing, and difficulty breathing
  • Reduced lung function
  • Aggravated asthma
  • Chronic bronchitis
  • Irregular heartbeat
  • Nonfatal heart attacks
  • Some cancers

Lab 1: Experiment 1
plastic case, microscope, and cotton balls

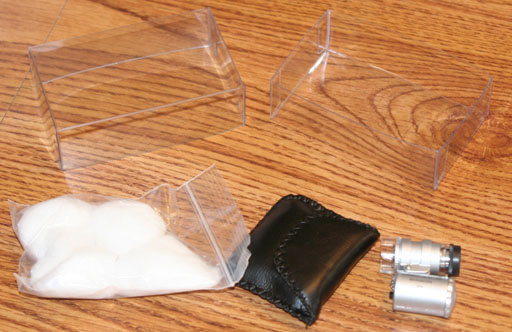

In your kit is a clear plastic case which contains a ziploc bag of cotton balls and a small black leather case, which contains the mini-microscope.

You also need some Scotch tape (invisible tape) for this lab.  Recently, Scotch tape has been placed in the lab kit, but for most of the kits sold this semester, there is no Scotch tape included.

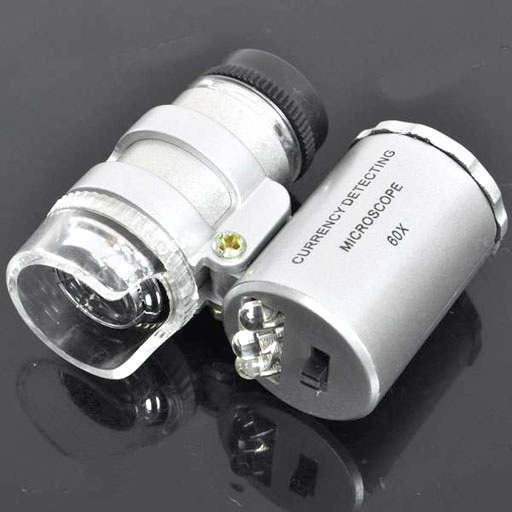

60x microscope

This lab uses the mini-microscope in your kit to see what particulates are in the air you breathe. The microscope is 60x, which is strong enough to see the particulates that have been discussed.

The left side of the microscope is the optics.  The right side cylinder holds the batteries and the LED lights. It also has the small light switch to turn on the LEDs.

microscope

Sliding the light switch one way turns on a small ultraviolet LED light.  Moving the switch the other way turns on two bright, bluish white LED lights.    Use the bright LED lights to view particules you collect.

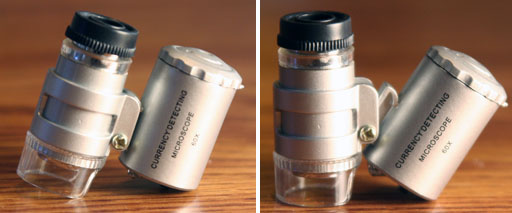

microscope pivots
Also notice that the light source swivels to change the angle of the light.  You can experiment with both positions to see with one works the best.
microscope eye piece slides out

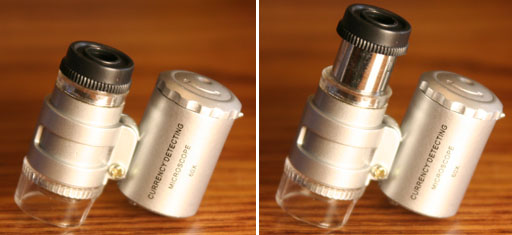

Also notice that the eye piece slides in and out.  This is one way to focus.  The other way to focus is to make sure the eye piece is slid all the way down, then just move the microscope a little farther from what you are examining to focus.
dusty car
One place to find particulates in the air is to look for what particulates have settled out of the air and onto our cars.  In the dry climate in Arizona, particulates are not washed out of the air from rain, so cars get dusty pretty quickly.  Also, the car seems to accumulate more road grime and dust when it's driven on the highways and streets.  A few cars filter the air coming through the vents, but that still doesn't help when you roll down the windows.  Again, most cars don't have a car cabin air filter.
close up of flower

POLLEN: Before looking at a whole collection of particulates that settle out to the air, it's best to look at specific particulates, so that you can become acquainted with how they look.  Pollen is one of the common particulates in the air.  For people with allergies, pollen is one of the biggest triggers of allergic reactions.

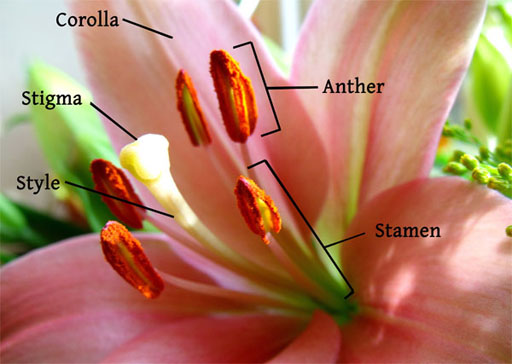

Pollen is stored on the anthers, which sit on the ends of stalks called filaments.



tape grabbing pollen from a rose

Your first task is to find something that is flowering.  Using Scotch-tape, try to lift some pollen from the center of a flower.

If the Scotch-tape picks up some of the larger parts of the plant, just brush them off with your fingers.  We are mostly interested in the grains of pollen.

camera 1. Take a photo of whatever flower you use to get a pollen sample.  If you don't have a camera with you, you can take a photo of one of the other samples you will take later.

Using tape to get pollen from flower

Here is another flower where we are using tape to lift up some of the pollen.  You can use the same strip of tape if you want to get pollen from various flowers.  Or you can just get pollen from one flower.  Pollen grains are very small and often look like small yellowish particles.



tape inside plastic case

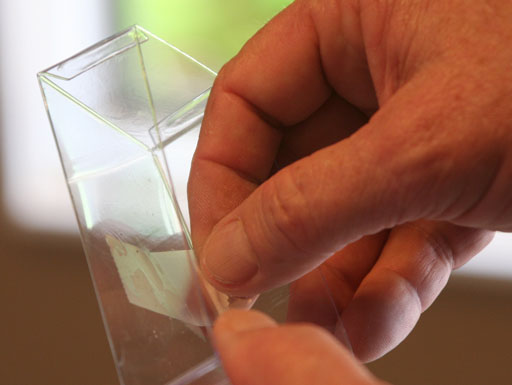

Take the tape that you used to collect the pollen and place it down on the inside of the plastic case that stored the microscope.
looking through mini microscope

Turn the plastic case around so you are looking from the outside of the case.  The tape is pressing the pollen up against the inside of the plastic case.

Hold your eye right up next to the eye piece.  By lifting the microscope a little ways from the surface of the case, you can bring the pollen into focus.

Depending on the particles, you sometimes see them better with a piece of white paper behind the Scotch tape.  So have a piece of paper where you can place in the plastic box so that the paper sits behind the tape.  The paper doesn't have to be right next to the tape but just behind it.

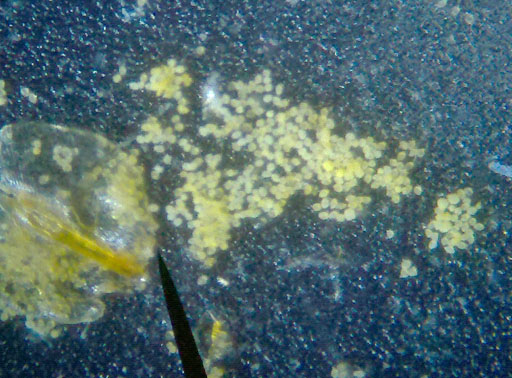

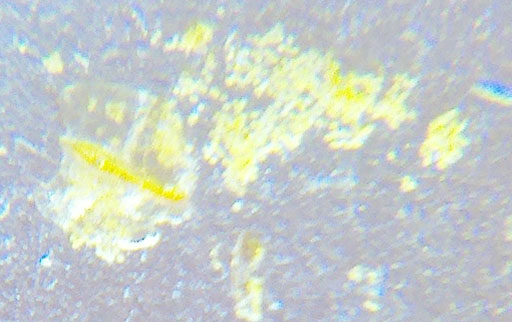

pollen as seen through the mini microscope Taking photos through the mini-microscope using a smartphone was not very easy.  The photo you see is one of pollen taken through the mini-microscope with the smartphone.   The photo doesn't do justice to what you see looking through the mini-microscope with your own eyes.   So I decided to use a large professional microscope to take the photos.  That would give you a better idea of what you see through the mini-microscope with your own eyes.
Pollen through miscroscope white background

This is the same pollen taken with a more expensive microscope.  We are still using a smartphone (Droid X). Like the photo above, this was taken with some white paper behind the pollen.

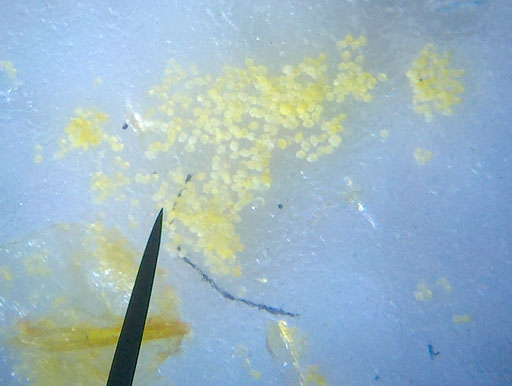

The pollen grains are the small round-like yellow granules.  At least these are how rose pollen looks like.

The other pieces in the photo are plant parts from the flower.

pollen

This is the same as the photo above but without the white paper behind the tape.    The darker background helps the light colored pollen stand out.  The small white specks that you see in the photo are just adhesive from the tape.   So you have to learn to ignore the part of the image that is coming just from the adhesive.

2. Describe what your pollen looks like through your mini-scope.



Pollen Electron microscope

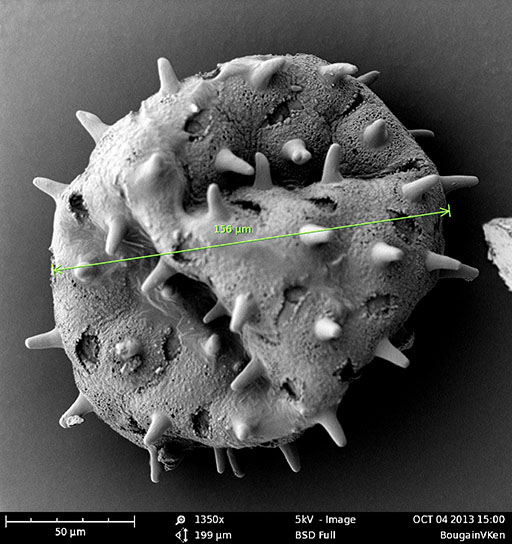

The best views of pollen are with an electron microscope.  I took this picture using the electron microscope at Phoenix College.   Many pollens have spikes, presumably the spikes help with it stick to insects that come to the flower.  This pollen is 156 micrometers (millionths of a meter) in diameter.   Anything over 100 micrometers (µm) is less likely to become airborne and cause allergies in people.
Bird of Paradise Pollen Micrograph

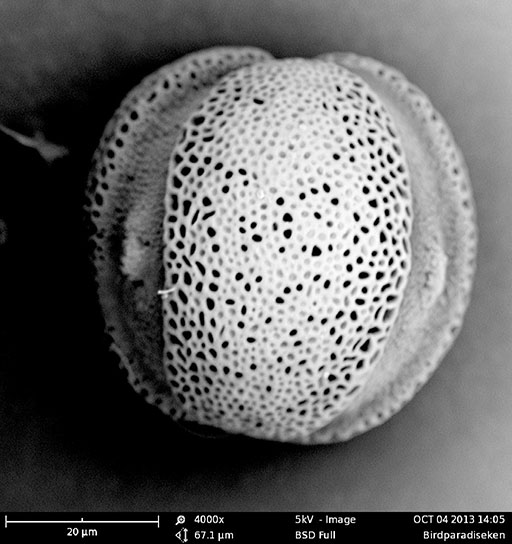

Here's another image I took.  This pollen is from the Mexican Bird of Paradise plant.   This one is much smaller than the one above.  Notice the magnification is 4000x for this image.  Using the 20µm scale at the bottom, we can estimate the size of this pollen to be about 60µm.  That means this can get airborne and get into people's sinuses and lungs to cause an allergic reaction.

I like the pores on the surface of the pollen and the furrows.  The number and orientation of the furrows is used to identify pollen.

PollenAttached Micrograph

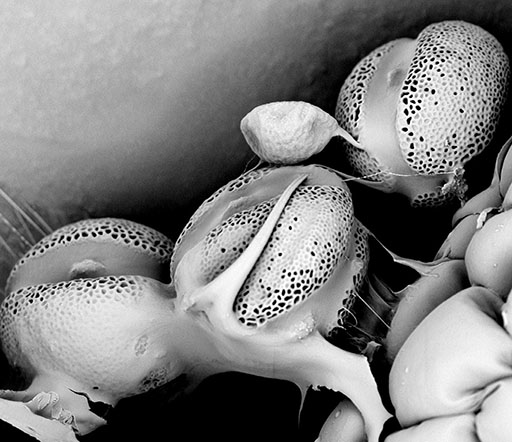

Here is the same pollen before it breaks free from the anthers.   Note:  Electron microscope images are only in grayscale.  That doesn't mean what you see is gray.  The pollen is probably yellow and somewhat transparent.  Electron microscope imaging doesn't show transparent items as being clear because of the nature of the imaging and because the samples are coated first with gold.

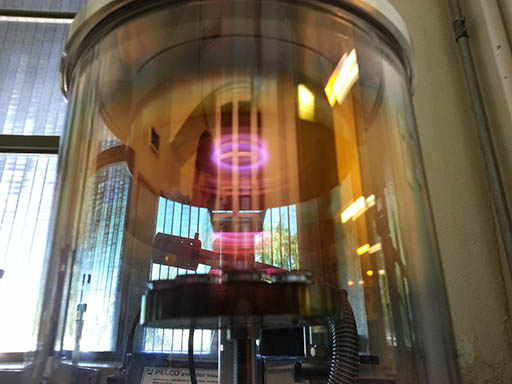

Vacuum Chamber for electron microscope As just mentioned, before images are taken with an electron microscope, the samples have to be coated with gold first.  This is to allow the sample to conduct electrons away from itself when hit with the electron beam.  We did the coating by placing the sample in a vacuum chamber and removing most of the air.  Electricity is then passed through the air from the sample holder to a gold lid above it.   The air becomes ionized (like it does when lightning passes through it) and the heat of the ionized air melts a small amount of the gold in the lid near it, and microscopic "raindrops" of gold fall down and coat the sample.  The purple ring is the ionized air (plasma).  Just above it is a gold cup that is part of the top of the chamber.
dust storm
DUST from SOIL:  Fine particles in dirt are often blown into the air by wind and vehicles.  Dust from soil is one of the common particulates in the air, especially in Phoenix and the surrounding area.
tape lifting dirt

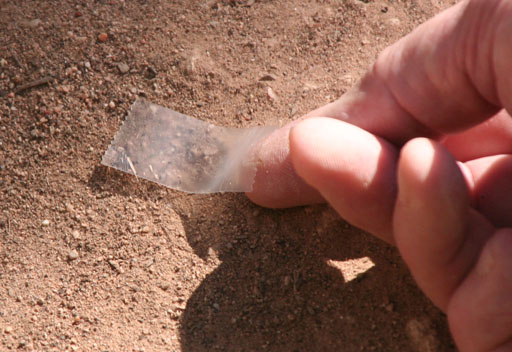

Find a patch of dirt and use Scotch tape to lift up some of the soil.  If the tape picks up some larger pieces, brush those off with your fingers.  We are mostly interested in the small particles in soil that can be lifted by wind.

camera 3. Take a photo of the area where you took the soil sample.

tape inside plastic case

Just like you did with pollen, take the tape that you used to collect some soil and place it down on the inside of the plastic case that stored the microscope.

All samples you collect are mounted the same way.  The are placed on the inside of the plastic box and then viewed from the other side.

looking through mini microscope

Also, just like before, depending on the color of the particles, you sometimes see them better with a piece of white paper behind the Scotch tape.

Soil in microscope

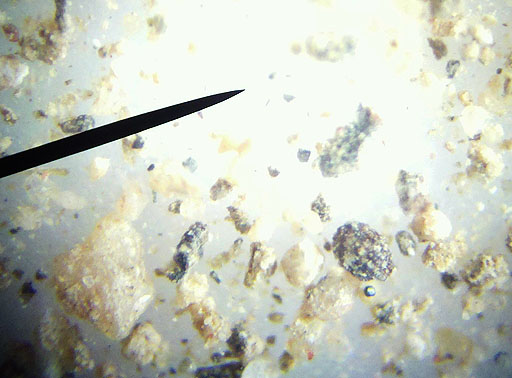

The soil sample collected shows a variety of minerals.   Many are too large to get airborne, but the smaller ones can become dust pollution. Soil is mostly quartz with hundreds of other minerals.  The darker grains are likely iron oxides or silicon dioxide (quartz) with iron or magnesium impurities.  Soil will also have some pieces of plant material.  None is that noticeable in this photo.   Some soils are rich in organic (plant) materials, but Arizona soil doesn't have that much plant material in its soil.
dust grains in microscope

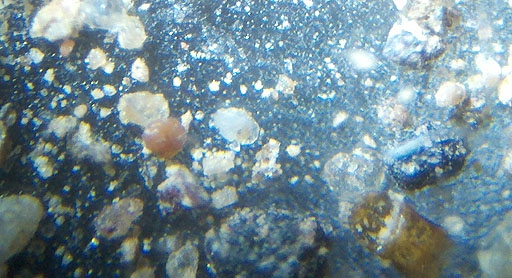

Here is the same sample without the white paper background.  You can see that it changes the look of the particles.  The lighter particles stand out more.  The grains of minerals have a rough look.  They also look clear, white, black, or may have some color in it.  If it is a bright color, then it is probably not a mineral, perhaps a paint chip or piece of some insect.

4. Describe what you see with in your soil sample.

pickup with diesel smoke

SOOT and SMOKE:  The other particles that are often seen in air samples are carbon particles (soot).   These come from unburnt gasoline and unburnt diesel.  Fireplaces also put out a lot of soot, but fortunately in Phoenix fireplaces aren't used that much. Forest fires also put out a tremendous amount of ashes and soot.  So it's just not the fire that is dangerous about a forest fire; it's the smoke.

When we think of diesel smoke, we usually think of the large semi trucks.  However, there are thousands of pickups that have diesel engines just in any one city.   The small trucks also put out diesel smoke.  Not as much as the large trucks nor as much as the truck in this photo.  Rather sadly, some diesel truck owners actually program their truck's microcontroller to produce these large amounts of smoke when they want to.

School bus diesel smoke
Nearly every school bus runs on diesel also.  If the engines are cold, old, or not properly tuned, then a lot of diesel smoke gets breathed by school children around that bus.
smoker's lung tissue

The ultimate air pollution happens when a person smokes.  The smoke is deliberately inhaled deep into the lung.  The very small particles of smoke penetrate into the lung tissue.

This is a section of lung tissue from a smoker.  You can see how the carbon particles get lodged around the alveoli.


Tail pipe sampled

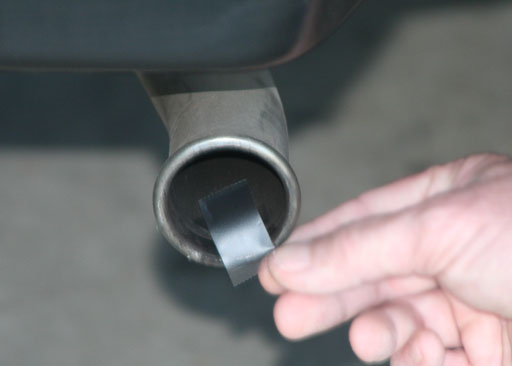

The inside of a tailpipe of a car is a good place to find some carbon particles.   So use a strip of tape to take sample.  Be sure the tail pipe is cool first.

Soot from tail pipe

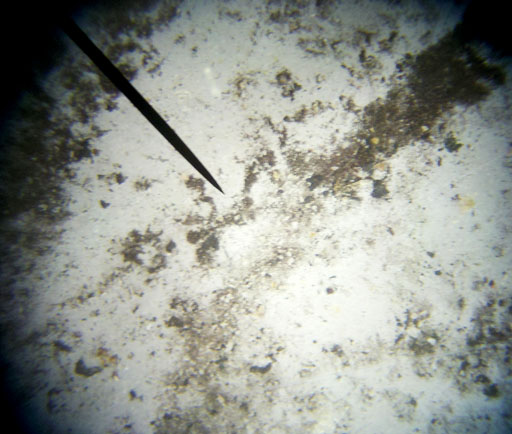

Here is the sample from the tail pipe.

Soot formed from unburnt gasoline or diesel are very small particles.  They look like tiny black or gray specks under the microscope.  In extreme magnification, they look like spheres.  The reddish color in this image is probably from rust particles (iron oxides) coming from metal in the exhaust system.

4. Describe what you see in your sample from a car or trucks tail pipe.   Also, say if it has a gas engine or diesel engine.

ash particles

Some ash particles from cigarettes or burning wood can be larger than the typical soot particles.  They are also black or dark gray.  Some have a bluish tint.  These ashes in the photo were caught in a wad of cotton using an air pump.   The strands are the cotton fibers.

Again, the larger particles are normally caught by the nose or sinus.  Unfortunately, smoking means the smoke goes directly into the mouth where this is little filtering.  So it gets into the lungs without much stopping it.

Fibers

FIBERS:

The air we breathe also has a lot of fibers and hairs in it.  These short strands of fiber are from such things as clothes, rags, carpet, and paper towels.   The hairs may be from pets or people, and even insects.

plastic case, microscope, and cotton balls Remember the plastic case that holds the microscope also has a ziploc bag of cotton balls.  Pulls small piece off of one of the cotton balls and stick it to a strip of Scotch tape.  The place the tape onto the plastic case as done before.
cotton fibers through microscope

Cotton fibers look like flat ribbons that got twisted ribbons.

The light on your microscope is more bluish, so the fibers may appear a little blue than just white.

cotton fibers at 250 x

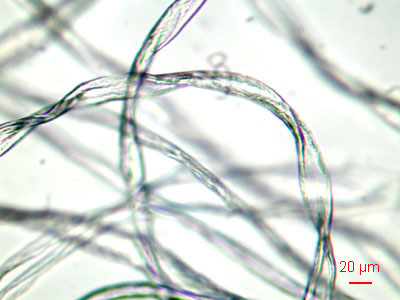

These are cotton fibers at 250x magnification.  Your mini-microscope is only 60x, but seeing the extra magnification helps you recognize the flat and twisting shape of cotton fibers.
blue synthetic fiber

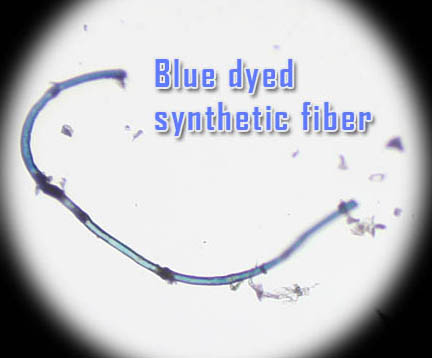

Synthetic fibers like nylon, polyester, and others are more round than cotton fibers.  This magnification is about 100x so synthetic fibers in your scope will look thinner.

Long fibers don't get in the air easily.  It's the short ones that we often breathe.

Fibers This photo was shown above.  The fibers that are more bent and twisted are likely cotton fibers. These have color because they are dyed cotton.   A few fibers are less bent.  Those are likely synthetic fibers.

On the left is a synthetic fiber at about 250x magnification.  Notice is it is not flat and twisted like cotton fiber.  You can see some turquoise dye on (or in) the fiber.  On the right is a strand of human or animal hair.  Animal hair has a channel that runs through the middle of it.   In high magnifications, scales on the outside of the hair can be seen..

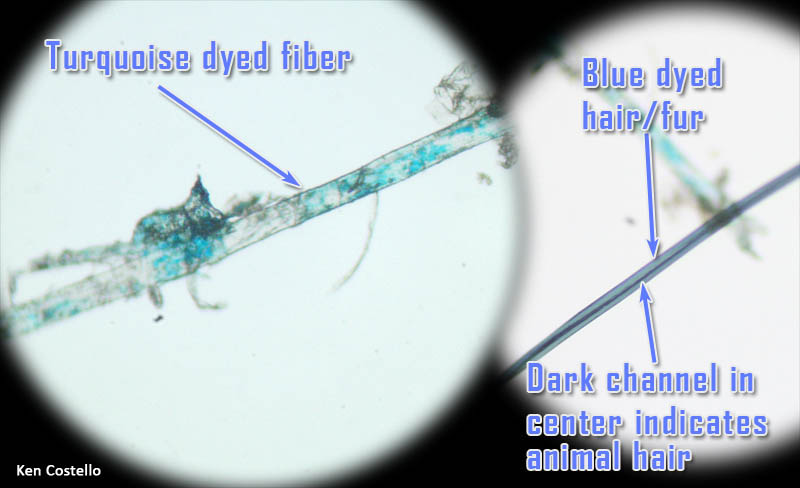

Hair and fiber under microscope


Dandruff flake under microscope

DANDER AND DANDRUFF:

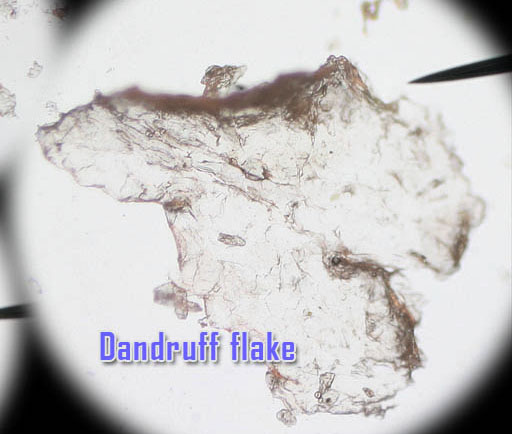

Both dander and dandruff are pieces of dead skin.  Dander normally refers to the dead skin that comes off of animals like pet dogs and cats.  Dandruff is dead skin from the scalp.  Dandruff is usually larger and flatter than dander.

Tape taking sample from top of window frame

SAMPLE OF INDOOR PARTICLES:

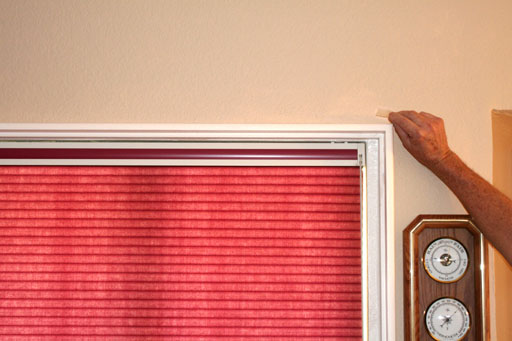

Now it is time to see the whole collection of what you breathe.  Find a place that doesn't get dusted.  That is usually the top of a door frame or window frame.  Also, tops of refrigerators or other high places where it is hard to get to are good sources.

cameraTake a photo of yourself where you sampled the indoor dust.  Make sure your face is visible.  That proves you were there.

Insect and fibers under scope

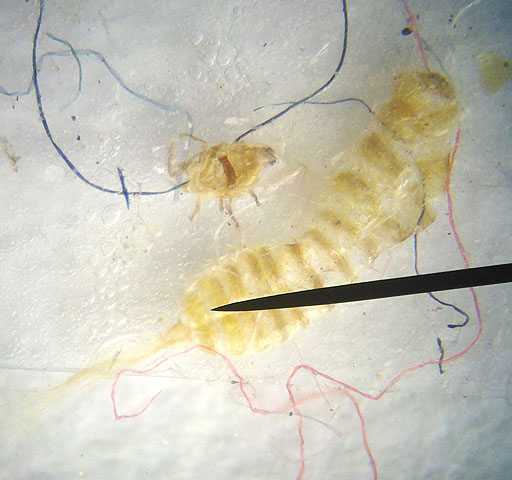

When I looked at the dust the tape picked up over a door frame, I was surprised to find two insects amid colored cotton fibers.  The smaller insect looks like a dust mite, but its too big.   I don't know what the big insect is. The black spots are likely soot.

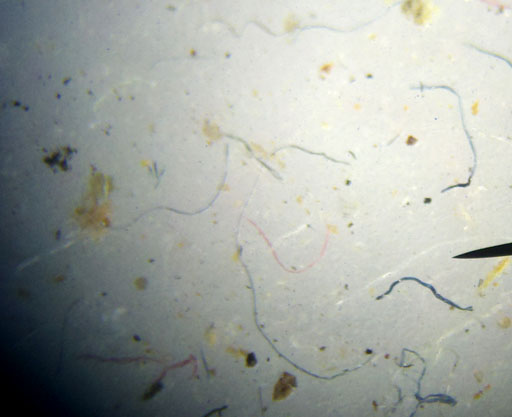

Sample of multiple particles under scope

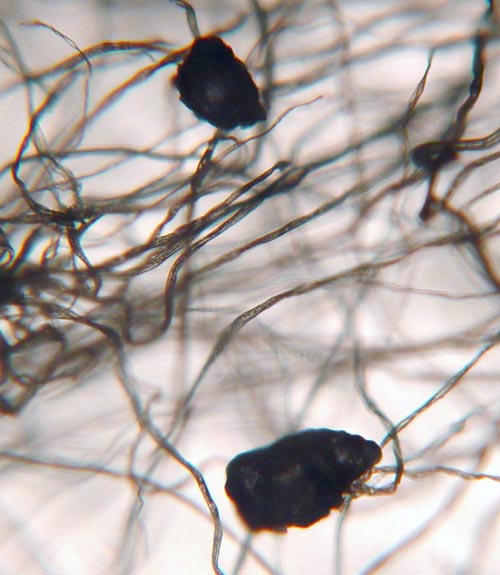

This is another portion of the tape from the top of a door frame.  There are more fibers plus some black specks that could be soot or ashes.  The brown particles are likely dander, plant pieices, and soil particles (dust).

5. Describe what you see in your sample that came from a place in the house that hadn't been dusted for a long time.

AC filter debris electron microscope

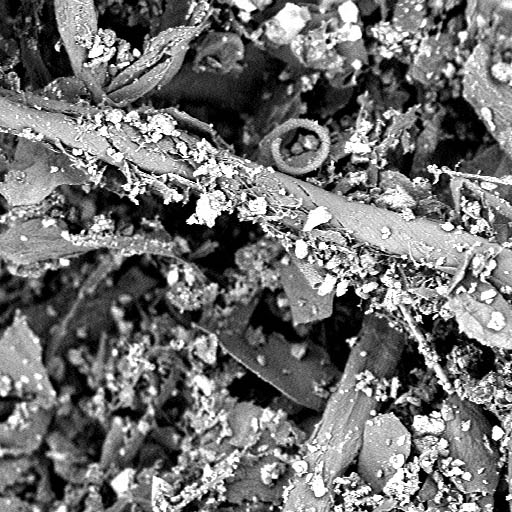

This is an image I took of some debris trapped in my A/C filter for my home.  As you can see it is pile of different kinds of particles.   The small white ones are likely grains of clay and quartz.  The flat thin piece are likely flakes of dead skin.  The tubular structures are fibers of some sort.

The magnification is 860x.

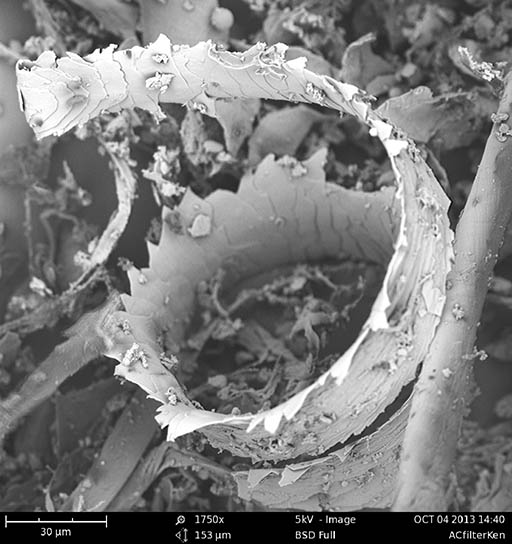

hair surface electron microscope Zooming to 1750x, I could see an outer slice of a human or animal hair.   Perhaps the vacuum cleaner blades peeled this off from an intact shaft of hair.

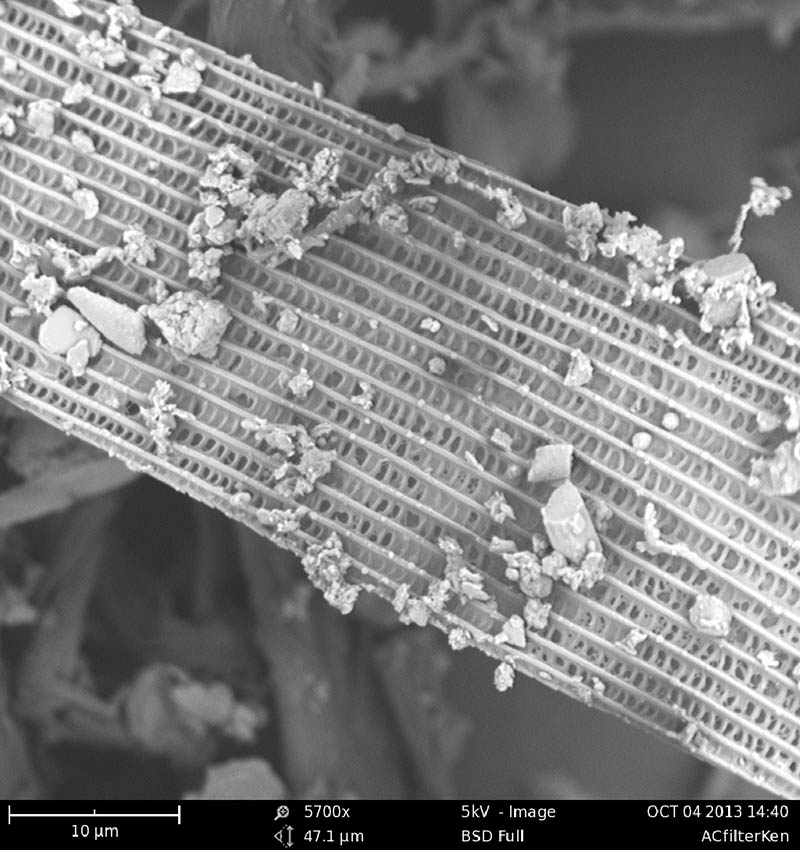

Zooming further to 5700x I found the structure below that had several parallel ridges with small window-like openings.  It is likely part of a plant.   Using the scale that shows 10µm, notice the smallest particles stuck to this structure are under 2.5µm, which are the more dangerous ones that can penetrate deeper into the lungs and lung tissue.  These are likely particles of clay and quartz.
micrograph

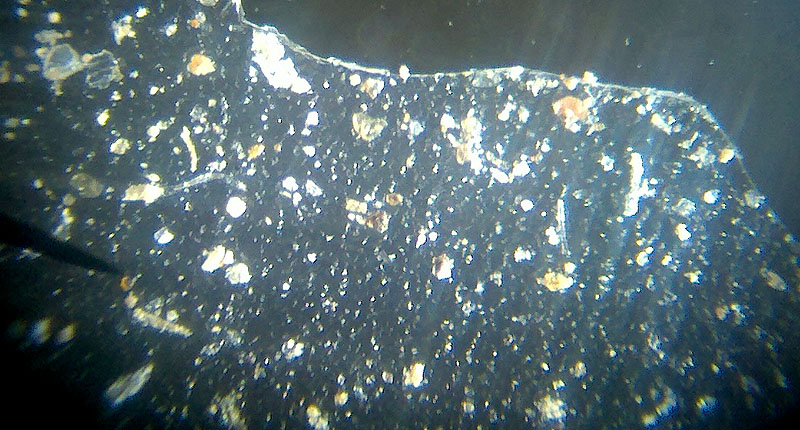

SAMPLE OF OUTDOOR PARTICLES:  Below is a sample taken from a dusty car.   What is mostly seen are lot of small particles of clear silica (sand/quartz). The photo doesn't show how clear these little particles appear.   A few fibers were seen but nothing like what is in the house.  Also, the few cylindrical particles present look like pieces of plant material.   This photo was shot without the white paper behind it.  When there was white paper behind it, many small black particles were seen.  They, again, are likely soot particles and even particles from tires.   So outside seems to have more mineral dust, more soot, and tire particles.
dust from car

Take a sample from a dusty car or something else outside that is real dusty.

6. Describe what you see in your sample that came from outside that has accumulated a lot of dust.

Email your descriptions and photos to chm107@chemsitryland.com

If you are interested in more information about microscopy, you can visit the website developed by the National High Magnetic Field Laboratory at the Florida State University.

http://micro.magnet.fsu.edu/
